DESCRIPTION

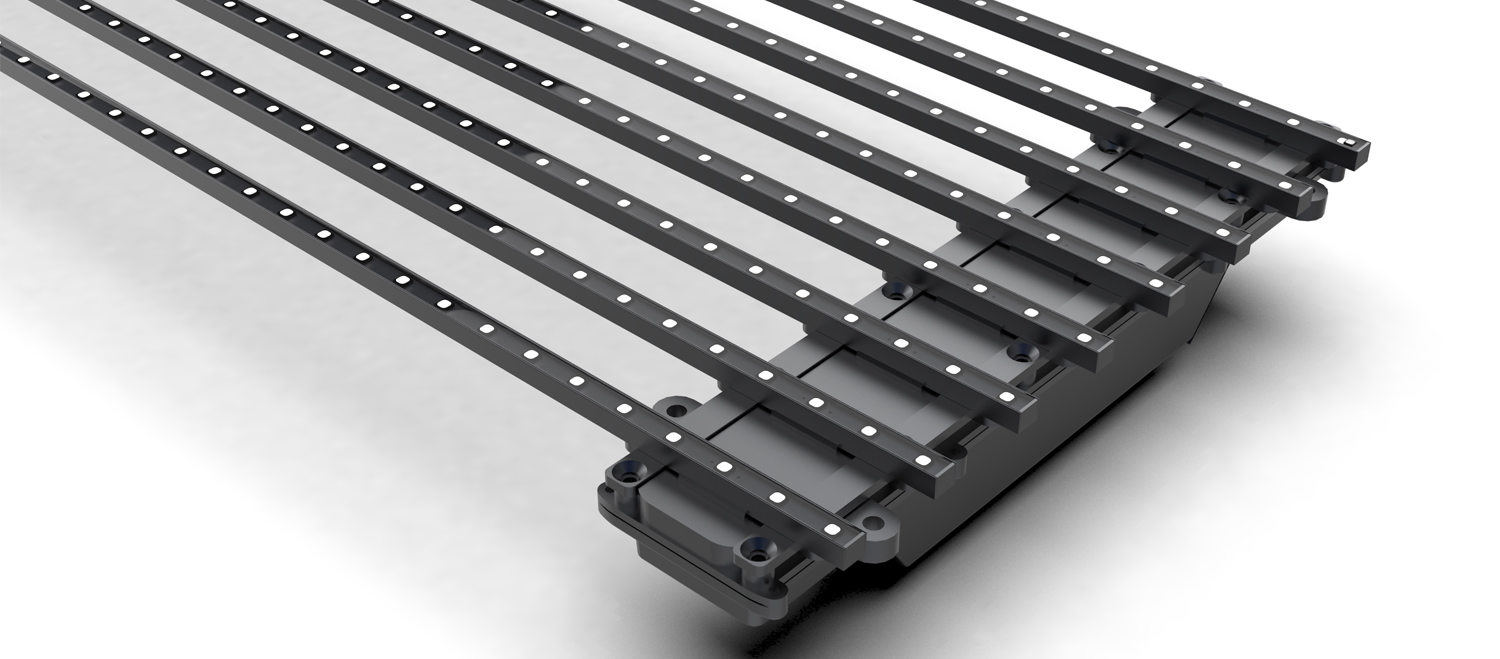

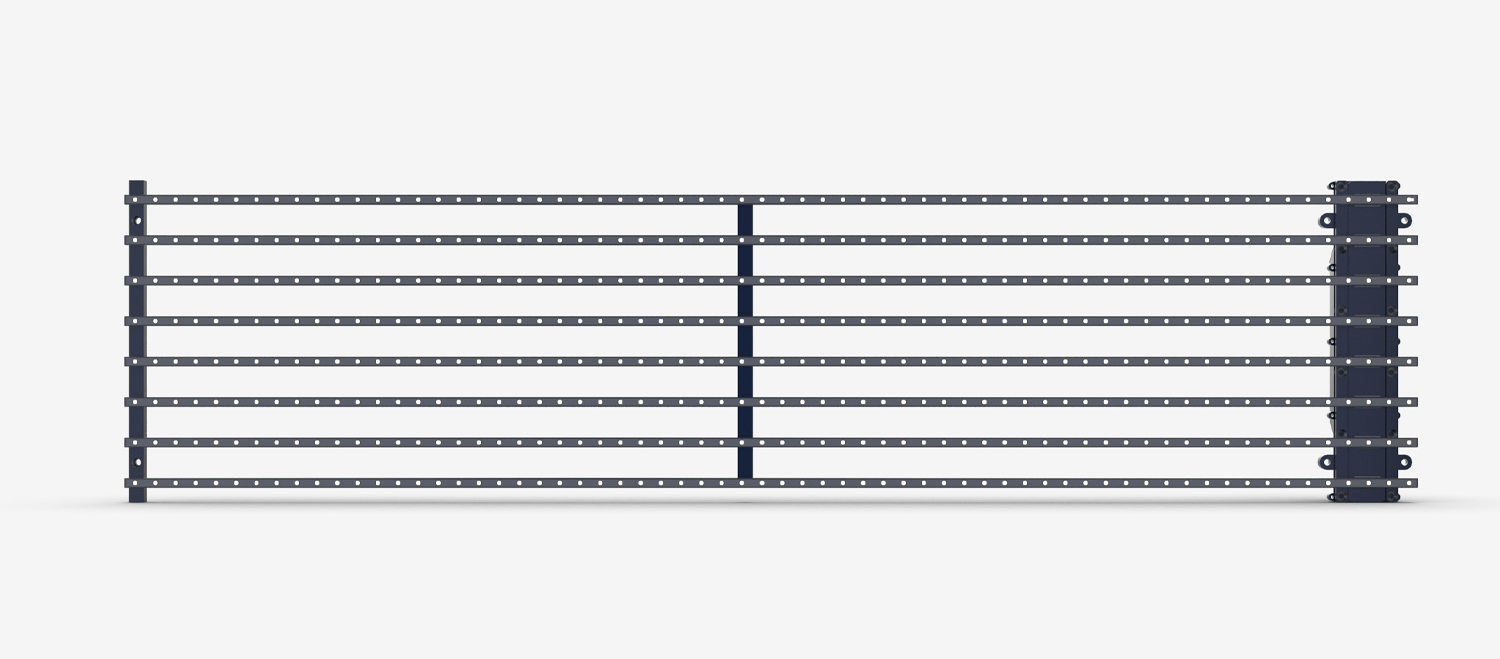

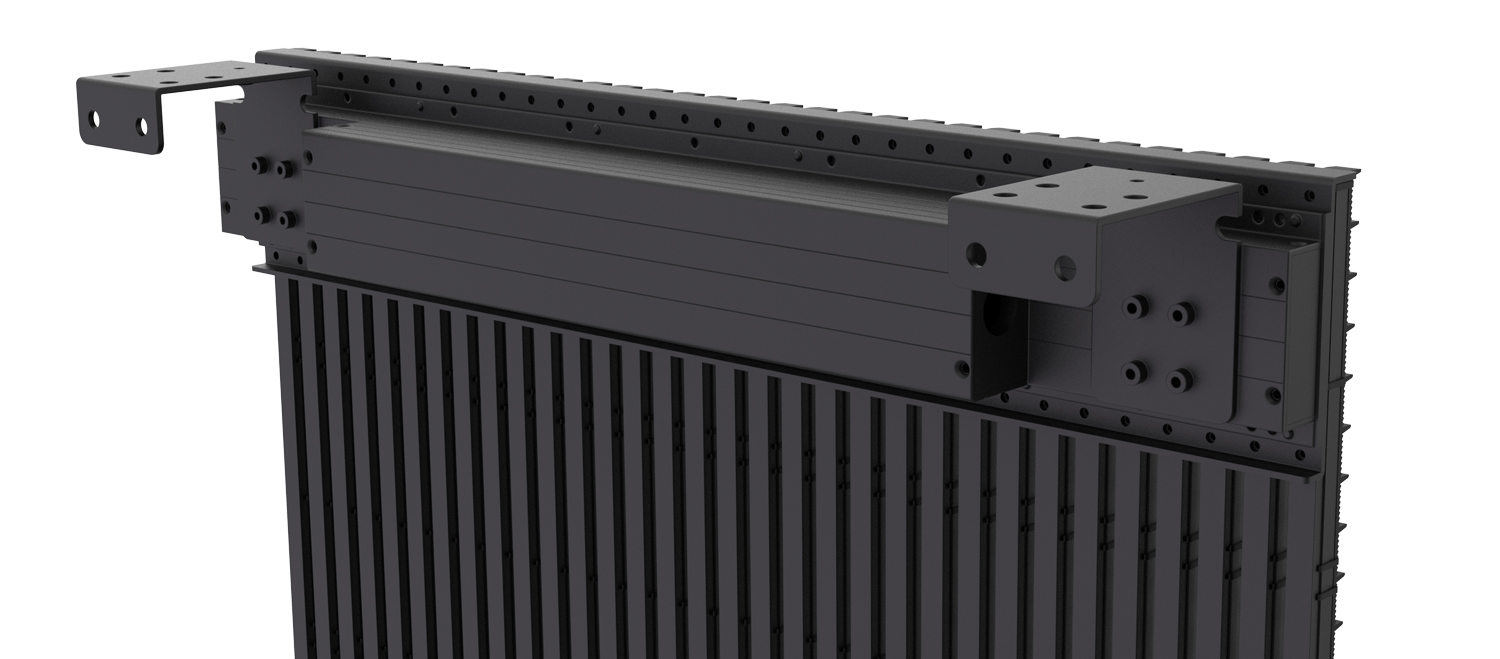

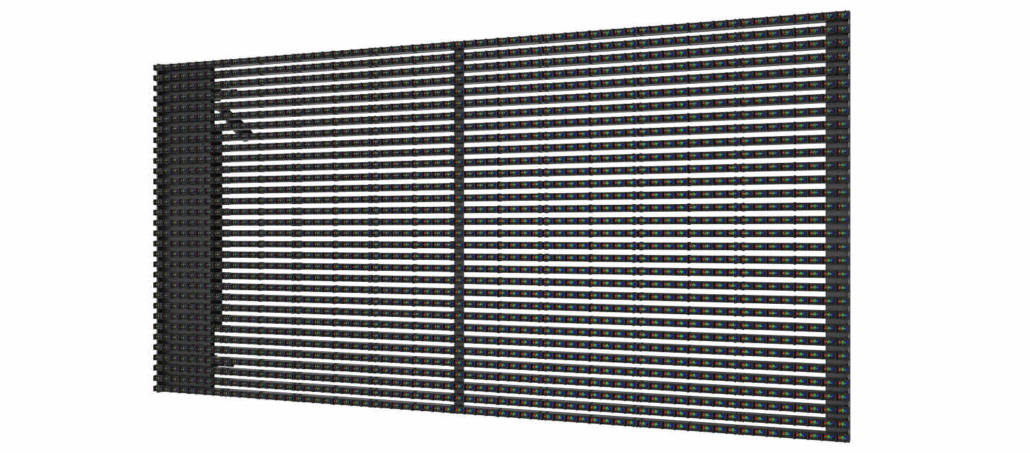

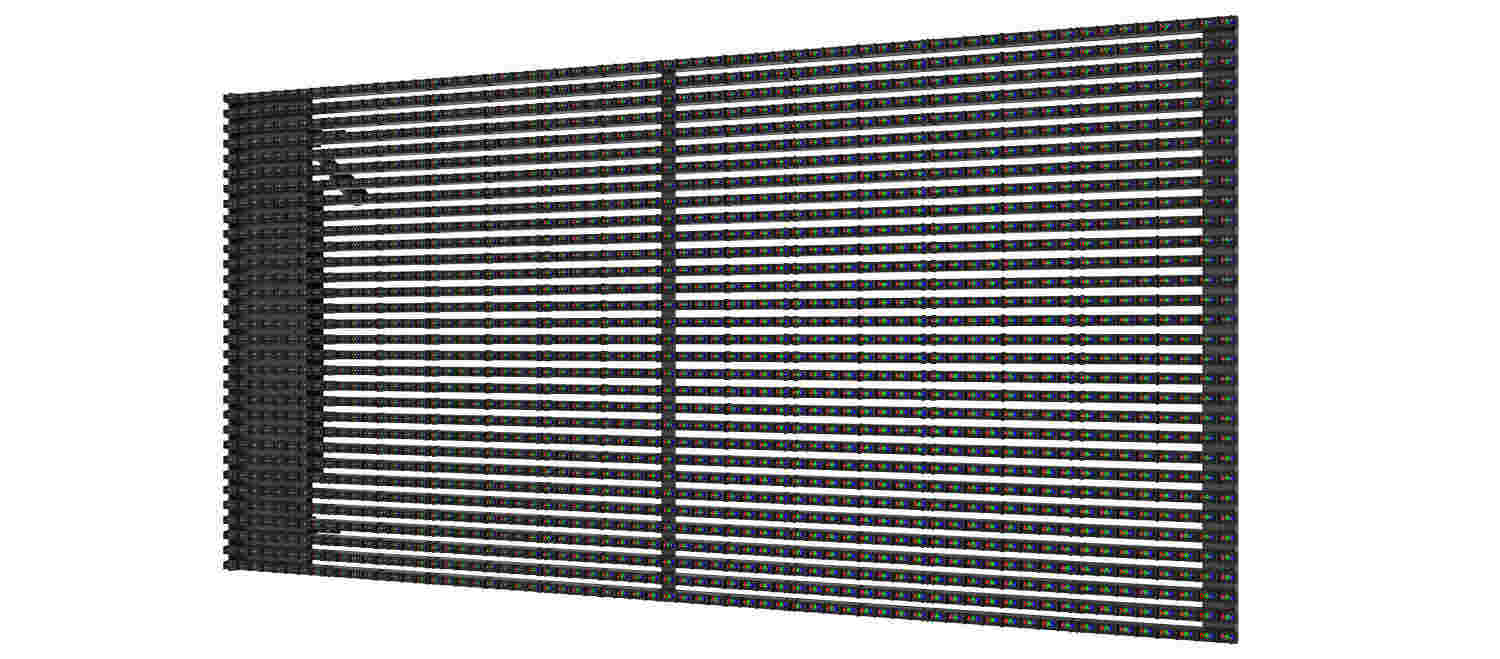

Standard size of P15.26 outdoor led grille screen: 1000*500, adopts modular design, can be customized and can be freely spliced.

Because its shape is hollow and mesh, people in the industry also call it grid screen, hollow screen, etc. Because the LED grille screen is highly transparent, light, thin and portable, it can form a transparent display effect on the glass curtain wall, and has a strong sense of technology and fashion, so it is very popular in the advertising industry, and its market popularity is no less. at small distances.

P15.26 outdoor led grille screen has the characteristics of waterproof, transparent, fast installation, convenient maintenance, etc.

Through the targeted improvement of the patch manufacturing process, lamp bead packaging, and control system of the grille screen.

The hollow design structure breaks through the many limitations of the traditional LED display on the wall of the building, making the project more flexible, more selective, more flexible, and greatly improved in transparency and pixel resolution.

FEATURES & SPECIFICATIONS

Pixel Pitch P10.42 P15.625 P15.625 P20 P25 P31.25
Resolution 9216/ 4096/ 4096/ 2500/ 1600/ 1024/
Module Size(WxHxD) 1000*500mm
LED Type 3535 SMD 3535 SMD 346DIP 346DIP 346DIP 346DIP
Brightness 4000nit 6000nit 10000nit 8000nit 6000nit 4000nit
IP IP67
Brightness Level 256
Color Processing 16Bit
Colors 281 trillion
Refresh Rate >1920Hz
Scan static
Max. Power Consumption 800W/ 800W/ 800W/ 600W/ 400W/ 300W/
Ave. Power Consumption 400W/ 400W/ 200W/ 300W/ 200W/ 150W/
Serviceability rear/front
Viewing angle 110°
Weight 15KG/
Work Voltage DC 5V
Operational Temp/Humidity -4060C ,10%-90%
Input Voltage AC 100V240V
